  • Quality 7011C/DT Angular Contact Ball Bearing for High-Speed Precision CNC Spindles with Extended Bearing Life and High Load Capacity factory

7011C/DT Angular Contact Ball Bearing for High-Speed Precision CNC Spindles with Extended Bearing Life and High Load Capacity

Basic Properties
Place of Origin: China
Brand Name: OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number: 7011C/DT, 7011AC/DB, 7011AC/DF, 7011AC/DT, 7011ACN2L1/DB, 7011ACQ5/DB, 7011ACQ1/P5DB, 7011ACQ1/P6DB, 7011ACN2L1/P5DB, 7011ACN2L1/P6DB, 7012/DB, 7012/DF, 7012/DT, 7012C/DB, 7012C/DF, 7012C/DT, 7012AC/DB, 7012AC/DF, 7012AC/DT, 7013C/DB, 7013C/DF, 7013C/DT, 7
Trading Properties
Minimum Order Quantity: 1(negotiation)
Price: negotiation
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50,000pcs/month
Tags

caged ball bearing

car ball bearing

ball bearing replacement
Specifications
Cage Type: Press Steel, Brass, Nylon Material: Bearing Steel
Lubrication: Grease / Oil Contact Angle: 15°
Inner Diameter: 55 Mm Weight: 0.88 Kg
High Light:

High-speed CNC spindle angular contact bearing

,

Extended life angular contact ball bearing

,

High load capacity precision ball bearing
Product Description

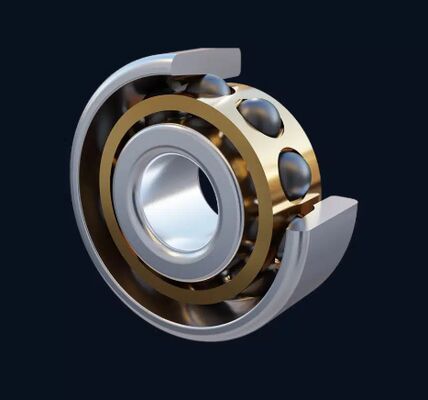

7011C/DT Angular Contact Ball Bearing

Engineered specifically for high-speed CNC spindles and precision machinery, this bearing is designed to withstand rigorous industrial environments.

Key Benefits
  • High-Speed Precision: Designed for optimal performance at high RPMs, reducing vibration and ensuring smooth operation.
  • Extended Bearing Life: Premium-grade steel and advanced cage design minimize wear and tear, effectively reducing machine downtime.
  • Superior Heat Dissipation: Engineered to operate at cooler temperatures, preventing thermal deformation during continuous production.
  • High Load Capacity: The DT (Duplex Tandem) configuration offers enhanced axial and radial load-carrying capacity for heavy-duty applications.
Technical Specifications
  • Model: 7011C/DT
  • Contact Angle: 15° (C)
  • Arrangement: DT (Duplex Tandem)
  • Application: CNC Spindles, High-speed Lathes, Milling Machines, Robotics
  • Quality Standard: P4/P5 Precision Grade (Interchangeable with major brands)
Model Part Number ID (mm) OD (mm) Width (mm) Weight (kg)
7011C/DT 436111 55 90 36 0.88
7011AC/DB 246111 55 90 36 0.88
7011AC/DF 346111 55 90 36 0.88
7011AC/DT 446111 55 90 36 0.88
7011ACN2L1/DB 246111K 55 90 36 0.88
7011ACQ5/DB 246111Q1 55 90 36 0.947
7011ACQ1/P5DB D246111Q1 55 90 36 0.947
7011ACQ1/P6DB E1246111Q1 55 90 36 0.947
7011ACN2L1/P5DB D246111KL 55 90 36 0.788
7011ACN2L1/P6DB E246111KL 55 90 36 0.788
7012DB
60 95 36 0.88
7012DF
60 95 36 0.88
7012DT
60 95 36 0.88
7012C/DB 236112 60 95 36 0.88
7012C/DF 336112 60 95 36 0.88
7012C/DT 436112 60 95 36 0.88
7012AC/DB 246112 60 95 36 0.9
7012AC/DF 346112 60 95 36 0.9
7012AC/DT 446112 60 95 36 0.9
7013C/DB 236113 60 95 36 1
7013C/DF 336113 60 95 36 1
7013C/DT 436113 60 95 36 1
7013AC/DB 246113 60 95 36 1
7013AC/DF 346113 60 95 36 1
7013AC/DT 446113 60 95 36 1
7013AC/P2DB B246113J 65 100 36 0.839
7013AC/P4DB C446113J 65 100 36 0.828
7013AC/P5DB E1446113J 65 100 36 0.828
7013AC/P2DT B446113J 65 100 36 0.828
7013ACN2L1/DB 246113LK 65 100 36 0.839
7014C/DB 236114 70 110 40 1.2
7014C/DF 336114 70 110 40 1.2
7014C/DT 436114 70 110 40 1.2
7014AC/DB 246114 70 110 40 1.28
7014AC/DF 346114 70 110 40 1.28
7014AC/DT 446114 70 110 40 1.45
7014CM/P5DB
70 110 40 1.1
7014AC/P2DT B446114J 70 110 40 1.56
7015C/DB 236115 75 115 40 1.56
7015C/DF 336115 75 115 40 1.56
7015C/DT 436115 75 115 40 1.56
7015AC/DB 246115 75 115 40 1.56
7015AC/DF 346115 75 115 40 1.56
7015AC/DT 446115 75 115 40 1.56
7015EA/DT 446115E 75 115 40 1.56
7018EAC/DB 246115E 75 115 40 1.56
7015EAC/DF 346115E 75 115 40 1.56
7015C/DBB
75 115 40 1.56
7016C/DB 236116 80 125 44 1.8
7016C/DF 336116 80 125 44 1.8
7016C/DT 436116 80 125 44 1.8
