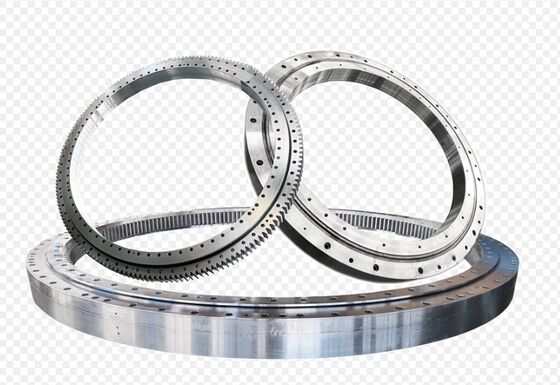

High-precision rotary bearings for cranes, excavators & wind turbines at unbeatable factory prices. ISO-certified quality with superior load capacity. Bulk discounts available.
| Product Type: | 1. Single Row Four-Point Contact Ball Slewing Bearing2. Double Row Angular Contact Ball Slewing Bearing3. Single Row Cross Roller Slewing Bearing4. Three-Row Cylindrical Roller Slewing Bearing | Material: | High-Carbon Chromium Steel |
| Diameter Range: | 100mm - 15,000mm (Customizable; Large-sized Bearings Can Be Segmented For Transportation) | Precision Grade: | P0, P6, P5 (Optional); Surface Roughness: Ra ≤ 0.2μm; Axial Clearance: 0.02-0.05mm (Adjustable) |
| Customization: | Accept |
| Feature | Factory Advantage |
|---|---|
| Forged & Quenched Raceway | 42CrMo / 50Mn forged rings, induction hardened raceway HRC 55-62, superior load capacity and long service life |
| High Gear Precision | Internal / External / No Gear options, gear accuracy up to DIN 6 / AGMA 9 |
| Advanced Sealing System | Triple-lip heavy-duty seal prevents grease leakage and contamination ingress |
| OEM & Customization | Custom OD/ID, bolt hole patterns, tooth profiles, and special coatings available |
| Direct Factory Pricing | No trading company markup — get manufacturer-level EXW/FOB pricing |
| Short Lead Time | Standard models 3-7 days ready for shipment; customized orders within 20-25 days |
| Quality Assurance | 100% rotational torque and clearance tested before packing; ISO 9001:2015 Certified |
| Series | Type | Typical Application |
|---|---|---|
| 01 Series | Single Row Ball Slewing Bearing | Small excavators, light-duty turntables |
| 02 Series | Double Row Ball Slewing Bearing | Truck cranes, aerial work platforms |
| 11 Series | Cross Roller Slewing Bearing | Welding positioners, precision rotary tables |
| 13 Series | Three-Row Roller Slewing Bearing | Heavy excavators, offshore cranes, wind turbines |
| Light Series | Thin Section Slewing Bearing | Solar trackers, medical equipment, radar antennas |
| Parameter | Standard Value |
|---|---|
| Material | 42CrMo / 50Mn Forged Steel |
| Raceway Hardness | HRC 55-62 |
| Gear Hardness | HRC 50-55 (Induction Hardened) |
| Clearance | 0.05 - 0.30 mm (Application Specific) |
| Lubrication | Grease Nipple / Oil Hole Standard |
| Corrosion Protection | Anti-Rust Oil Coating + Export Wooden Case |
- Outer Diameter (OD) / Inner Diameter (ID) / Height (H)
- Gear Type: Internal / External / No Gear
- Quantity Required
| Current bearing designation | d (mm) | D (mm) | T (mm) | Weight (kg) |
|---|---|---|---|---|
| 131.25.500 | 366 | 634 | 148 | 224 |
| 131.25.560 | 426 | 694 | 148 | 240 |
| 131.25.630 | 496 | 764 | 148 | 270 |
| 131.25.700 | 576 | 844 | 148 | 300 |
| 131.32.800 | 636 | 964 | 182 | 500 |
| 131.32.900 | 736 | 1064 | 182 | 600 |
| 131.32.1000 | 836 | 1164 | 182 | 680 |
| 131.32.1120 | 950 | 1284 | 182 | 820 |
| 131.40.1250 | 1055 | 1445 | 220 | 1200 |
| 131.40.1400 | 1205 | 1595 | 220 | 1300 |
| 131.40.1600 | 1405 | 1795 | 220 | 1520 |
| 131.40.1800 | 1605 | 1995 | 220 | 1750 |
| 131.45.2000 | 1779 | 2221 | 231 | 2400 |
| 131.45.2000.04 | 1779 | 2304 | 231 | |
| 131.45.2240 | 2019 | 2461 | 231 | 2700 |
| 131.45.2500 | 2279 | 2721 | 231 | 3000 |
| 131.45.2800 | 2579 | 3021 | 231 | 3400 |
| 131.50.3150.12K | 2760.5 | 3432 | 270 | 5174 |
| 131.50.3150 | 2826 | 32432 | 270 | 5000 |
| 131.30.3150.12K | 2922 | 3476 | 182 | 2392 |
| 131.50.3550 | 3268 | 3832 | 270 | 5600 |
| 131.50.4000 | 3718 | 4282 | 270 | 6400 |
| 131.50.4000.04K | 3718 | 4400 | 270 | 6377 |
| 131.50.4500 | 4218 | 4782 | 270 | 7100 |
| 131.50.4500.04 | 4218 | 4906 | 270 | 7250 |
| 131.60.5000.04 | 4670 | 5440 | 320 | 11752 |
132.40.1400 Industrial Turntable Slewing Bearing
Product Description The 132 series slewing bearings are manufactured from high-strength alloy steel, featuring high load capacity, superior rigidity, and excellent rotational accuracy. They are widely used in excavators, cranes, port machinery, construction equipment, wind power systems, and large rotary platforms. The bearings can simultaneously withstand axial, radial, and overturning moment loads, ensuring stable operation, long service life, and easy maintenance. Product
7398/1572 Large Diameter Slewing Bearing Supplier
Product Overview Our Slewing Bearings, also known as turntable bearings or rotary supports, are precision-engineered components designed to be the "joints of machinery." They are built to handle complex, multi-directional forces, making them indispensable for any application requiring slow, heavy-duty rotation. We offer a comprehensive range of standard and custom-designed slewing bearings to meet the diverse needs of modern industry. Key Features & Advantages Superior Load
133 Series Slewing Bearing Heavy Duty Slewing Bearing for Excavator
Key Selling Points: Wide Range of Types Single-row ball (light & heavy duty) Double-row ball Crossed roller Three-row roller Dimensions Available ID from 100 mm to 5,000 mm Customized sizes accepted Material & Process Bearing steel: 50Mn, 42CrMo Induction hardened raceways Precision grinding & gear options Performance Features High load capacity (axial, radial, tilting moment) Smooth rotation & long service life Sealed design – anti-dust & anti-corrosion Technical Specificati
134.25.560 Cross Roller Slewing Bearing for Construction Machinery
Slewing Bearing Product Introduction Welcome to our trade page! We are a professional manufacturer and supplier of high-quality slewing bearings, also known as slewing rings or turntable bearings, which are widely recognized as the "joints of machines" in various industrial fields . Our products are engineered to meet the strict demands of global customers, with reliable performance, excellent durability and competitive pricing, making them ideal for both standard and custom
