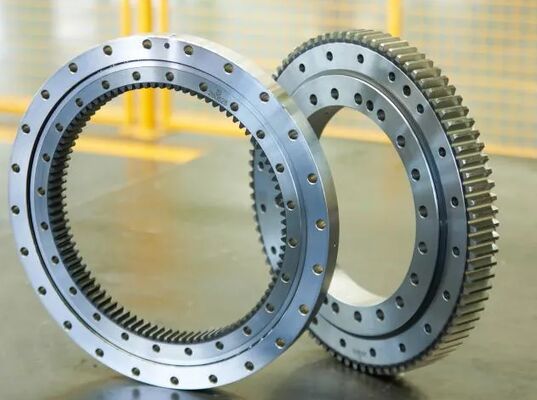

Upgrade your machinery with our durable slewing bearings. Smooth rotation, all-weather performance, and exceptional wear resistance. Perfect for cranes, excavators, and more.
| Product Type: | 1. Single Row Four-Point Contact Ball Slewing Bearing2. Double Row Angular Contact Ball Slewing Bearing3. Single Row Cross Roller Slewing Bearing4. Three-Row Cylindrical Roller Slewing Bearing | Material: | High-Carbon Chromium Steel |
| Diameter Range: | 100mm - 15,000mm (Customizable; Large-sized Bearings Can Be Segmented For Transportation) | Precision Grade: | P0, P6, P5 (Optional); Surface Roughness: Ra ≤ 0.2μm; Axial Clearance: 0.02-0.05mm (Adjustable) |
| Customization: | Accept | Lubrication: | Grease / Oil |
| Packing: | Customer Requirement |
-
Excavators & Cranes: Heavy loads, constant swing. Built to handle the stress.
-
Aerial Lifts & Man Baskets: Low torque, quiet motion, zero wobble.
-
Solar Trackers: Corrosion-resistant finish. Made for the outdoors.
-
Wind Turbines & Rotary Tables: Precision where it counts.
-
Forged 42CrMo4 steel rings. Not cast. Not soft.
-
Internal gear, external gear, or gearless. Your choice.
-
Standard sizes in stock. Custom specs available fast.
Ready to Match Any Part Number.
Send your drawing or model. We'll quote quick and ship clean.
| Current bearing designation | Dimensions(mm) | weigh | ||
| d | D | T | (kg) | |
| Type121 | ||||
| 121.25.500 | 398 | 602 | 75 | 80 |
| 121.25.560 | 458 | 662 | 75 | 90 |
| 121.25.630 | 528 | 732 | 75 | 100 |
| 121.25.710 | 608 | 812 | 75 | 110 |
| 121.28.800 | 678 | 922 | 82 | 170 |
| 121.28.900 | 778 | 1022 | 82 | 190 |
| 121.28.1000 | 878 | 1122 | 82 | 210 |
| 121.28.1120 | 998 | 1242 | 82 | 230 |
| 121.32.1250 | 1110 | 1390 | 91 | 350 |
| 121.32.1400 | 1260 | 1540 | 91 | 400 |
| 121.32.1600 | 1460 | 1740 | 91 | 440 |
| 121.32.1800 | 1660 | 1940 | 91 | 500 |
| 121.40.2000 | 1825 | 2178 | 112 | 900 |
| 121.40.2240 | 2065 | 2418 | 112 | 1000 |
| 121.40.2500 | 2325 | 2678 | 112 | 1100 |
| 121.40.2800 | 2625 | 2978 | 112 | 1250 |
| 121.50.3150 | 2922 | 3376 | 134 | 2150 |
| 121.50.3550 | 3322 | 3776 | 134 | 2470 |
| 121.50.4000 | 3772 | 4226 | 134 | 2800 |
| 121.50.4500 | 4272 | 4726 | 134 | 3100 |
132.40.1400 Industrial Turntable Slewing Bearing
Product Description The 132 series slewing bearings are manufactured from high-strength alloy steel, featuring high load capacity, superior rigidity, and excellent rotational accuracy. They are widely used in excavators, cranes, port machinery, construction equipment, wind power systems, and large rotary platforms. The bearings can simultaneously withstand axial, radial, and overturning moment loads, ensuring stable operation, long service life, and easy maintenance. Product
7398/1572 Large Diameter Slewing Bearing Supplier
Product Overview Our Slewing Bearings, also known as turntable bearings or rotary supports, are precision-engineered components designed to be the "joints of machinery." They are built to handle complex, multi-directional forces, making them indispensable for any application requiring slow, heavy-duty rotation. We offer a comprehensive range of standard and custom-designed slewing bearings to meet the diverse needs of modern industry. Key Features & Advantages Superior Load
133 Series Slewing Bearing Heavy Duty Slewing Bearing for Excavator
Key Selling Points: Wide Range of Types Single-row ball (light & heavy duty) Double-row ball Crossed roller Three-row roller Dimensions Available ID from 100 mm to 5,000 mm Customized sizes accepted Material & Process Bearing steel: 50Mn, 42CrMo Induction hardened raceways Precision grinding & gear options Performance Features High load capacity (axial, radial, tilting moment) Smooth rotation & long service life Sealed design – anti-dust & anti-corrosion Technical Specificati
134.25.560 Cross Roller Slewing Bearing for Construction Machinery
Slewing Bearing Product Introduction Welcome to our trade page! We are a professional manufacturer and supplier of high-quality slewing bearings, also known as slewing rings or turntable bearings, which are widely recognized as the "joints of machines" in various industrial fields . Our products are engineered to meet the strict demands of global customers, with reliable performance, excellent durability and competitive pricing, making them ideal for both standard and custom
