Tapered inner and outer ring raceways with tapered rollers. Projection lines meet at common point on bearing axis. Suitable for combined radial and axial loads.

Brand Name:	OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number:	32036 XM/32036 XM/32936 CM/32936 CM/LM 236749/LM 236710 A/LL 537649/LL 537610/67883/67820/H 239649/H 239610/M 238849/M 238810/67884/67820/H 239649/H 239612/87737/87111/JM 738249/JM 738210/JM 738249 A/JM 738210/32038 XM/32038 XM/87750/87111/93750/93125/EE 4
MOQ:	1(negotiation)
Price:	negotiation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50,000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cage Type:

Press Steel, Brass, Nylon

Material:

High-quality Bearing Steel

Lubrication:

Grease / Oil

Packing:

Customer Requirement

Type:

Single/Double/Four

Packaging Details:

sea worthy standard

Highlight:

Tapered roller bearing with raceways

Tapered roller bearing for radial axial loads

Tapered roller bearing with tapered rollers

Product Description

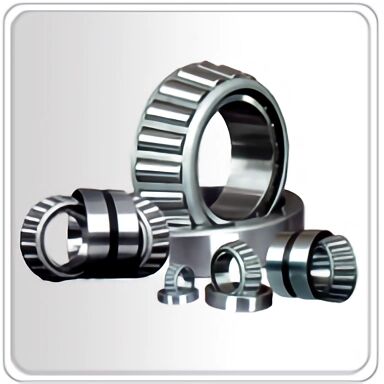

EntrustBearing Taper Roller Bearings

EntrustBearing produces taper roller bearings in many designs and sizes to match their many uses.

Types Available

Single row taper roller bearings
Double row taper roller bearings
Four row taper roller bearings

Design Features

Taper roller bearings have tapered inner and outer ring raceways, with tapered rollers arranged between them. The projection lines of all tapered surfaces meet at a common point on the bearing axis.

Load Capacity

This design makes taper roller bearings particularly suitable for handling combined radial and axial loads. The axial load carrying capacity is largely determined by the contact angle α. The larger the angle α, the higher the axial load carrying capacity.

Calculation Factor e

The calculation factor e indicates the contact angle size. The larger the value of e, the larger the contact angle, and the greater the bearing's suitability for carrying axial loads.

Separable Design

Taper roller bearings are generally separable. The cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup (outer ring).

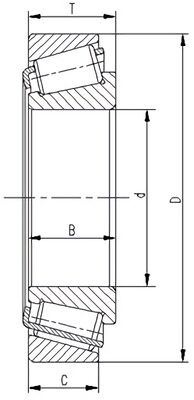

Bearing No.	Cone	Cup	BORE	O.D.	WIDTH	LOAD	Mass
32036 XM/32036 XM	32036XM	32036XM	7.0866	11.0236	2.5197	281000	25.1
32936 CM/32936 CM	32936CM	32936CM	7.0866	9.8425	1.7717	179000	14.3
LM 236749/LM 236710 A	LM236749	LM236710A	7.2500	9.2610	1.3386	124000	7.5
LL 537649/LL 537610	LL537649	LL537610	7.2500	9.3125	1.0312	75700	5.7
67883/67820	67883	67820	7.2500	10.5000	1.8750	188000	18.9
H 239649/H 239610	H239649	H239610	7.3750	12.5970	3.5000	356000	58.4
M 238849/M 238810	M238849	M238810	7.3750	10.6250	2.1875	225000	21.8
67884/67820	67884	67820	7.3750	10.5000	1.8750	188000	18.1
H 239649/H 239612	H239649	H239612	7.3750	12.6250	3.5000	356000	58.8
87737/87111	87737	87111	7.3750	11.1250	2.0000	188000	21.6
JM 738249/JM 738210	JM738249	JM738210	7.4803	10.2362	1.8110	181000	15.1
JM 738249 A/JM 738210	JM738249A	JM738210	7.4803	10.2362	1.8110	181000	14.9
32038 XM/32038 XM	32038XM	32038XM	7.4803	11.4173	2.5197	291000	32.7
87750/87111	87750	87111	7.5000	11.1250	2.0000	156000	20.8
93750/93125	93750	93125	7.5000	12.5000	2.5000	290000	43.7
EE 420751/421437	EE420751	421437	7.5000	14.3720	3.6250	409000	87.4
HH 840249/HH 840210	HH840249	HH840210	7.5000	13.2500	3.8750	460000	80.8
EE 350750/351687	EE350750	351687	7.5000	16.8750	4.1875	382000	139.2
87762/87111	87762	877111	7.6250	11.1250	2.0000	156000	20
67885/67820	67885	67820	7.5000	10.5000	1.8750	188000	17.4
LM 739749/LM 739710	LM739749	LM739710	7.7500	10.1250	1.5625	161000	11.7
LL 639249/LL 639210	LL639249	LL639210	7.7500	9.5000	0.9375	76300	4.7
L 540049/L 540010	L540049	L540010	7.7500	10.0000	1.1250	91800	7.4
LM 739749/LM 739719	LM739749	LM739719	7.7500	10.5000	1.5625	161000	13.7
32940 M/32940 M	32940M	32940M	7.8740	11.0236	2.0079	237000	20.8
32040 XM/32040 XM	32040XM	32040XM	7.8740	12.2047	2.7559	342000	41.5
L 540048/L 540010	L540048	L540010	7.8740	10.0000	1.1250	91800	7
JHM 840449/JHM 840410	JHM840449	JHM840410	7.8740	11.8110	2.5590	287000	34.3
M 241543/M 241510	M241543	M241510	7.8750	11.5000	2.2813	263000	27.6
93787/93125	93787	93125	7.8750	12.5000	2.5000	290000	40.5
H 247535/H 247510	H247535	H247510	7.8750	15.1250	4.4375	699000	132.9
HH 144642/HH 144614	HH144642	HH144614	7.8750	15.5000	4.3750	585000	133.7
