Tapered Roller Bearings – Single Row, Double Row & Four Row, High Load Capacity, Ideal for Combined Load Conditions in Metallurgy, Mining & Heavy Industry

Tapered Roller Bearings – Single Row, Double Row & Four Row, High Load Capacity, Ideal for Combined Load Conditions in Metallurgy, Mining & Heavy Industry

Brand Name: OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number: 68450/68712, 64450/64700, 64450/64708, HH 224346/HH 224310, HH 926744/HH 926710, LM 122948/LM 122911, HM 926740/HM 926710, 938/932, L 623149/L 623110, 71450/71750, 37425/37625, 56426/56650, 936/932, 56425/56650, 71425/71750, 56425/56662, 37431/37625, 37431
MOQ: 1(negotiation)
Price: negotiation
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50,000pcs/month
Detail Information
Place of Origin:
China
Cage Type:
Press Steel, Brass, Nylon
Material:
High-quality Bearing Steel
Lubrication:
Grease / Oil
Packing:
Customer Requirement
Type:
Single/Double/Four
Packaging Details:
sea worthy standard
Highlight:

single row tapered roller bearings

,

high load capacity tapered bearings

,

mining industry tapered roller bearings

Product Description

TAPERED ROLLER BEARINGS

Overview

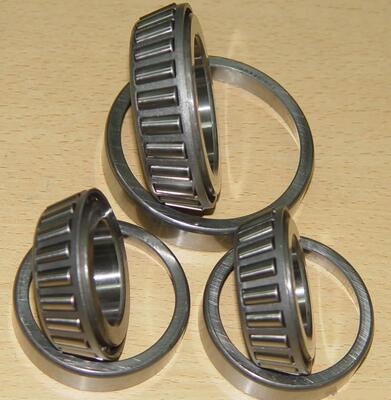

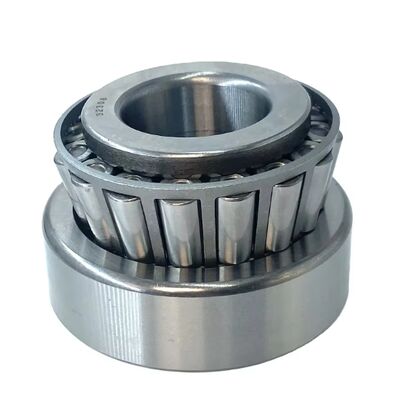

Tapered roller bearings have tapered inner and outer rings with tapered rollers between them. All the tapered surfaces meet at one point on the bearing axis. This special design allows the bearing to handle both radial and axial loads at the same time.

These bearings are separable. You can install the inner ring (with rollers and cage) separately from the outer ring. That makes mounting quick and easy.

They come in three types: single row, double row, and four row.


Features

  • Easy to install – The bearing separates into parts. You can mount the inner and outer rings separately.

  • Less stress – The rollers and raceways touch along a line, not a point. This reduces stress concentration.

  • Handles heavy loads – Supports both high radial loads and high axial loads.

  • One-way axial load only – A single bearing handles axial load in one direction. For the opposite direction, you need a second bearing installed the other way.

  • Stronger with bigger angle – The outer ring raceway angle decides the load capacity. Bigger angle means heavier load capacity.

  • Contact angle matters – The contact angle α controls axial load capacity. Bigger α = more axial load. The factor e tells you the angle size. Larger e means larger angle and better axial load performance.

  • Single row needs adjustment – You set the clearance during installation.

  • Double & four row are ready to use – The clearance is preset at the factory based on your requirements. No adjustment needed.


Applications

  • Single row – The most popular type. Used widely in many industries.

  • Double row – Small sizes are now used in car front wheels.

  • Four row – Built for big heavy machines like cold rolling mills.

  • Main industries – Automotive, rolling mills, mining, metallurgy, plastics machinery, and more.


Why Choose Tapered Roller Bearings?



You need... Tapered roller bearings deliver...
Combined radial + axial load Yes, they handle both
Heavy load capacity Yes, high radial and axial
Easy mounting Yes, separable design
One-way axial load Yes (use two bearings for both directions)
Factory-set clearance Yes for double & four row

Bearing No. Cone Cup BORE O.D. WIDTH LOAD Mass
37425/37625 37425 37625 4.2500 6.2500 0.9063 40100 3.0
56426/56650 56426 56650 4.2500 6.5000 1.4375 79700 5.6
936/932 936 932 4.2500 8.3750 2.6250 177000 23.0
56425/56650 56425 56650 4.2500 6.5000 1.4375 79700 5.8
71425/71750 71425 71750 4.2500 7.5000 1.8750 122000 12.3








56425/56662 56425 56662 4.2500 6.6250 1.4375 79700 6.2
37431/37625 37431 37625 4.3125 6.2500 0.9063 40100 2.9
37431 A/37625 37431A 37625 4.3125 6.2500 0.9063 40100 2.9
64432/64700 64432 64700 4.3297 7.0000 1.6250 94200 8.2
LM 522548/LM 522510 LM522548 LM522510 4.3302 6.2987 1.3750 80300 4.9
LM 522549/LM 522510 LM522549 LM522510 4.3302 6.2987 1.3750 80300 5.0








64433/64700 64433 64700 4.3304 7.0000 1.6250 94200 8.2
30222 M/30222 M 30222M 30222M 4.3307 7.8740 1.6142 106000 11.6
32222 M/32222 M 32222M 32222M 4.3307 7.8740 2.2047 150000 16.1
30222 CM/30222 CM 30222CM 30222CM 4.3307 7.8740 1.6142 106000 11.6
JHM 522649/JHM 522610 JHM522649 JHM522610 4.3307 7.0866 1.8504 125000 10.2








32022 X/32022 X 32022X 32022X 4.3307 6.6929 1.4961 97300 6.8
JM 822049/JM 822010 JM822049 JM822010 4.3307 6.4961 1.3780 80100 5.4
32222 CM/32222 CM 32222CM 32222CM 4.3307 7.8740 2.2047 150000 16.1
33022/33022 33022 33022 4.3307 6.6929 1.8504 126000 8.5
H 924045/H 924010 H924045 H924010 4.3750 8.4375 2.1875 137000 18.6








DIT # CONE CUP BORE O.D. WIDTH LOAD WEIGHT



d D W STATIC lb lb.








68450/68712 68450 68712 4.5000 7.1250 1.3750 61000 6.3
64450/64700 64450 64700 4.5000 7.0000 1.6250 94200 7.6
64450/64708 64450 64708 4.5000 7.0856 1.6250 94200 7.9
HH 224346/HH 224310 HH224346 HH224310 4.5000 8.3750 2.6260 204000 28.0
HH 926744/HH 926710 HH926744 HH926710 4.5000 10.7500 3.2500 243000 50.2








LM 122948/LM 122911 LM122948 LM122911 4.5000 6.2500 1.3750 80300 4.4
HM 926740/HM 926710 HM926740 HM926710 4.5000 9.0000 2.1250 151000 21.3
938/932 938 932 4.5000 8.3750 2.6250 177000 21.7
L 623149/L 623110 L623149 L623110 4.5000 6.0000 0.8438 42300 2.3
71450/71750 717450 71750 4.5000 7.5000 1.8750 122000 11.3
