| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | N311/NJ2311/ NJ411/NU1012/N212/NJ312/NUP2312/NU412/NU1013/NU213/NUP313(customizable) |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |

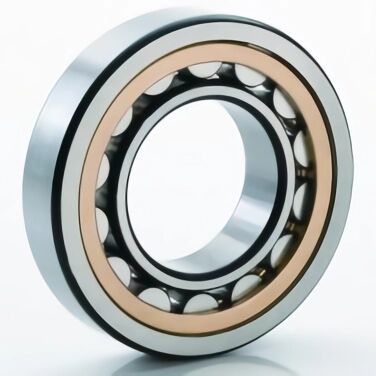

Cylindrical rollers have linear contact with the raceway, and the bearings can carry heavier load. Applications are found in situations characterized by heavy load and shock load and also high rotation speed. EntrustBearing produces cylindrical roller bearings in many designs, dimension series and sizes. The majority are single row bearings with a cage. Single and double row full complement bearings
We also offer insulated cylindrical roller bearings and deep groove ball bearings, with insulation on either inner or outer ring to protect against electric corrosion.

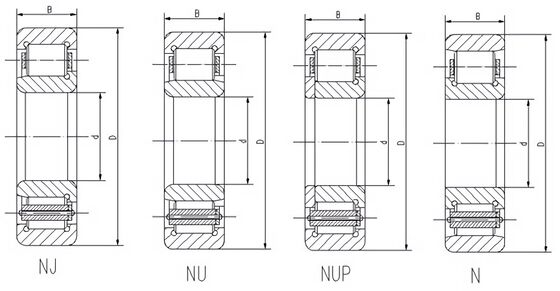

The cylindrical roller bearings comprises the basic types
Cylindrical rollers are widely used in electric motors, gearboxes, pumps, compressors, machine tools, automotive transmissions, rolling mills, fans, industrial reducers, and various heavy‑duty rotating machinery. They are ideal for applications requiring high radial load capacity, high rigidity, and high running accuracy under continuous operation.
| Bearings No. | d (mm) | D (mm) | B (mm) | Cr (kN) | C0r (kN) | Weight (kg) |
|---|---|---|---|---|---|---|
| N 311 ECM | 55 | 120 | 29 | 156 | 143 | 1.57 |
| NJ 311 ECM | 55 | 120 | 29 | 156 | 143 | 1.58 |
| NU 311 ECM | 55 | 120 | 29 | 156 | 143 | 1.57 |
| NUP 311 ECM | 55 | 120 | 29 | 156 | 143 | 1.55 |
| NJ 2311 ECP | 55 | 120 | 43 | 232 | 232 | 2.3 |
| NU 2311 ECP | 55 | 120 | 43 | 232 | 232 | 2.25 |
| NUP 2311 ECP | 55 | 120 | 43 | 232 | 232 | 2.35 |
| NJ 411 | 55 | 140 | 33 | 142 | 140 | 2.55 |
| NU 411 | 55 | 140 | 33 | 142 | 140 | 2.5 |
| NU 1012 ML | 60 | 95 | 18 | 37.4 | 44 | 0.48 |
| N 212 ECM | 60 | 110 | 22 | 108 | 102 | 0.81 |
| NJ 212 ECM | 60 | 110 | 22 | 108 | 102 | 0.83 |
| NU 212 ECM | 60 | 110 | 22 | 108 | 102 | 0.87 |
| NUP 212 ECM | 60 | 110 | 22 | 108 | 102 | 0.86 |
| NJ 2212 ECM | 60 | 110 | 28 | 146 | 153 | 1.15 |
| NU 2212 ECM | 60 | 110 | 28 | 146 | 153 | 1.1 |
| NUP 2212 ECM | 60 | 110 | 28 | 146 | 153 | 1.15 |
| N 312 ECM | 60 | 130 | 31 | 173 | 160 | 1.8 |
| N 312 ECP | 60 | 130 | 31 | 173 | 160 | 1.8 |
| NJ 312 ECM | 60 | 130 | 31 | 173 | 160 | 2 |
| NU 312 ECM | 60 | 130 | 31 | 173 | 160 | 1.95 |
| NUP 312 ECP | 60 | 130 | 31 | 173 | 160 | 1.95 |
| NJ 2312 ECP | 60 | 130 | 46 | 260 | 265 | 2.8 |
| NU 2312 ECM | 60 | 130 | 46 | 260 | 265 | 3.15 |
| NUP 2312 ECP | 60 | 130 | 46 | 260 | 265 | 2.85 |
| NJ 412 | 60 | 150 | 35 | 168 | 173 | 3.1 |
| NU 412 | 60 | 150 | 35 | 168 | 173 | 3 |
| NU 1013 ECP | 65 | 100 | 18 | 62.7 | 81.5 | 0.45 |
| NJ 213 ECM | 65 | 120 | 23 | 122 | 118 | 1.07 |
| NU 213 ECM | 65 | 120 | 23 | 122 | 118 | 1.16 |
| NUP 213 ECP | 65 | 120 | 23 | 122 | 118 | 1.1 |
| NJ 2213 ECP | 65 | 120 | 31 | 170 | 180 | 1.45 |
| NU 2213 ECP | 65 | 120 | 31 | 170 | 180 | 1.4 |
| N 313 ECM | 65 | 140 | 33 | 212 | 196 | 2.25 |
| NJ 313 ECM | 65 | 140 | 33 | 212 | 196 | 2.5 |
| NU 313 ECM | 65 | 140 | 33 | 212 | 196 | 2.43 |
| NUP 313 ECP | 65 | 140 | 33 | 212 | 196 | 2.35 |
