Products
Home / Products / Cylindrical Roller Bearing /

single row,double row,multi-row Cylindrical roller bearings model NJ202/N203/NJ2203/NU303/NF204/NU2204/NU304/N205/NJ 2305,are widely used in electric motors, gearboxes, pumps, compressors, machine too

single row,double row,multi-row Cylindrical roller bearings model NJ202/N203/NJ2203/NU303/NF204/NU2204/NU304/N205/NJ 2305,are widely used in electric motors, gearboxes, pumps, compressors, machine too

single row,double row,multi-row Cylindrical roller bearings model NJ202/N203/NJ2203/NU303/NF204/NU2204/NU304/N205/NJ 2305,are widely used in electric motors, gearboxes, pumps, compressors, machine too

Brand Name: OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number: NJ202/N203/NJ2203/NU303/NF204/NU2204/NU304/N205/NJ 2305(customizable)
MOQ: 1(negotiation)
Price: negotiation
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50,000pcs/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Oem:
Accept
Type:
Roller,cylindrical Roller Bearing,cam
Number Of Row:
Single Row,Double Row,Other,Four Row
Service:
OEM Customized Services,OEM / Pre- And After-sale Service,OEM Service.Design Service,OEM
Cage Type:
Brass/Steel/Nylon
Designation:
N, NU, NUP, NJ, NF, NJP
Material:
High-quality Bearing Steel
Packaging Details:
sea worthy standard
Product Description
Overview:

Maximize the efficiency and longevity of your machinery with our high-performance Cylindrical Roller Bearings. Engineered for applications requiring high radial load capacity and precision, these bearings utilize a line contact design that significantly outperforms standard ball bearings in heavy-duty scenarios.

Featuring a separable design, our cylindrical roller bearings allow for easy installation and maintenance. Whether you need to accommodate thermal expansion in a shaft (NU type) or require precise axial location (NUP type), our diverse range ensures the perfect fit for your industrial needs.

 We also offer insulated cylindrical roller bearings and deep groove ball bearings, with insulation on either inner or outer ring to protect against electric corrosion.

Applications
  • Electric Motors & Generators
  • Gearboxes & Transmission Systems
  • Machine Tool Spindles
  • Construction & Mining Equipment
  • Wind Turbines
  • Industrial Pumps & Compressors
  • Rolling Mills
Key Features
  • Linear contact with raceway for superior load distribution
  • High radial load capacity and rigidity
  • Suitable for heavy loads and shock loads
  • Excellent performance at high rotation speeds
  • Available in single row, double row, and multi-row configurations

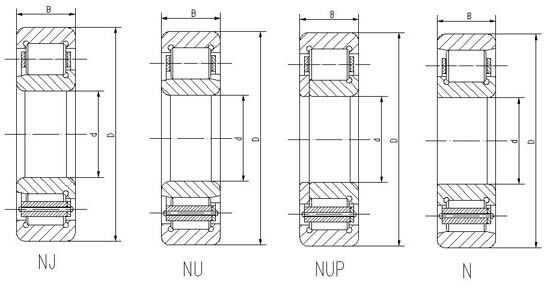

The cylindrical roller bearings comprises the basic types

  1. single row cylindrical roller bearings, caged, mainly of NU, NJ, NUP and N designs
  2. double row cylindrical roller bearings, caged, mainly of the NNU and NN designs
  3. multi-row cylindrical roller bearings, caged



Bearings No. d (mm) D (mm) B (mm) Cr (kN) C0r (kN) Weight (kg)
NJ 202 ECP 15 35 11 12.5 10.2 0.049
NU 202 ECP 15 35 11 12.5 10.2 0.047
N 203 ECP 17 40 12 17.2 14.3 0.066
NJ 203 ECP 17 40 12 17.2 14.3 0.07
NU 203 ECP 17 40 12 17.2 14.3 0.068
NUP 203 ECP 17 40 12 17.2 14.3 0.073
NJ 2203 ECP 17 40 16 23.8 21.6 0.095
NU 2203 ECP 17 40 16 23.8 21.6 0.092
NUP 2203 ECP 17 40 16 23.8 21.6 0.097
N 303 ECP 17 47 14 24.6 20.4 0.12
NJ 303 ECP 17 47 14 24.6 20.4 0.12
NU 303 ECP 17 47 14 24.6 20.4 0.12
N 204 ECP 20 47 14 25.1 22 0.11
NF 204 ECP 20 47 14 25.1 22 0.12
NJ 204 ECP 20 47 14 25.1 22 0.11
NU 204 ECP 20 47 14 25.1 22 0.11
NUP 204 ECP 20 47 14 25.1 22 0.12
NJ 2204 ECP 20 47 18 29.7 27.5 0.14
NU 2204 ECP 20 47 18 29.7 27.5 0.14
N 304 ECP 20 52 15 35.5 26 0.15
NJ 304 ECP 20 52 15 35.5 26 0.17
NU 304 ECP 20 52 15 35.5 26 0.17
NUP 304 ECP 20 52 15 35.5 26 0.16
NJ 2304 ECP 20 52 21 47.5 38 0.22
NU 2304 ECP 20 52 21 47.5 38 0.21
NUP 2304 ECP 20 52 21 47.5 38 0.22
NU 1005 25 47 12 14.2 13.2 0.084
N 205 ECP 25 52 15 28.6 27 0.13
NJ 205 ECP 25 52 15 28.6 27 0.15
NU 205 ECP 25 52 15 28.6 27 0.14
NUP 205 ECP 25 52 15 28.6 27 0.14
NJ 2205 ECP 25 52 18 34.1 34 0.18
NU 2205 ECP 25 52 18 34.1 34 0.17
NUP 2205 ECP 25 52 18 34.1 34 0.17
N 305 ECP 25 62 17 46.5 36.5 0.24
NJ 305 ECP 25 62 17 46.5 36.5 0.29
NU 305 ECP 25 62 17 46.5 36.5 0.28
NUP 305 ECP 25 62 17 46.5 36.5 0.25
NJ 2305 ECP 25 62 24 64 55 0.39
NU 2305 ECP 25 62 24 64 55 0.38
NUP 2305 ECP 25 62 24 64 55 0.38
