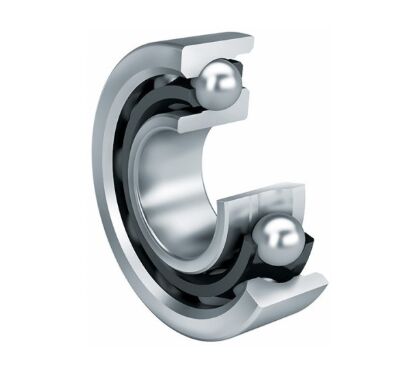

7011C/DT Angular Contact Ball Bearing Set - 55x90x36mm Tandem Matched Pair, P4 Precision Spindle Grade for CNC Machinery

Brand Name:	OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number:	7011C DT/7011AC DB/7011AC DF/7011AC DT/7011ACN2L1 DB/7011ACQ5 DB/7011ACQ1 P5DB/7011ACQ1 P6DB/7011ACN2L1 P5DB/7011ACN2L1 P6DB/7012DB/7012DF/7012DT/7012C DB/7012C DF/7012C DT/7012AC DB/7012AC DF/7012AC DT/7013C DB/7013C DF/7013C DT/7013AC DB/7013AC DF/7013AC
MOQ:	1(negotiation)
Price:	negotiation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50,000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Cage Type:

Press Steel, Brass, Nylon

Material:

High-quality Bearing Steel

Lubrication:

Grease / Oil

Packing:

Customer Requirement

Packaging Details:

sea worthy standard

Product Description

Maximize your machine performance with our high-precision 7012C/DB Angular Contact Ball Bearings. Designed for demanding CNC environments, these bearings are built to deliver exceptional thermal stability and minimal runout. Whether you are running high-speed finishing cuts or heavy-duty operations, our 7012C/DB bearings provide the structural rigidity necessary to maintain consistent production quality.

Key Technical Advantages:

Matched Pair (DB Configuration): Pre-assembled Back-to-Back configuration for optimal load distribution and superior resistance to tilting moments.
Precision-Engineered P4 Grade: Manufactured to strict P4 tolerance levels to ensure ultra-smooth rotation and reduced vibration in high-RPM spindle applications.
Optimized Thermal Stability: Advanced cage design and high-purity GCr15 vacuum-degassed steel construction ensure minimal heat expansion, allowing for longer continuous run-times.
Rigorous Quality Control: Every unit undergoes individual dimension, noise, and vibration testing before shipment to ensure top-tier performance standards.

Technical Specifications (7012C/DB):

Configuration: DB (Back-to-Back Matched Pair)
Bore Diameter (ID): 60 mm
Outer Diameter (OD): 95 mm
Total Width: 36 mm (18mm per bearing)
Material: High-Purity Bearing Steel
Precision Level: P4/P5

Model	Part Number	ID (mm)	OD (mm)	Width (mm)	Weight (kg)
7012C/DB
7011C/DT	436111	55	90	36	0.88
7011AC/DB	246111	55	90	36	0.88
7011AC/DF	346111	55	90	36	0.88
7011AC/DT	446111	55	90	36	0.88
7011ACN2L1/DB	246111K	55	90	36	0.88
7011ACQ5/DB	246111Q1	55	90	36	0.947
7011ACQ1/P5DB	D246111Q1	55	90	36	0.947
7011ACQ1/P6DB	E1246111Q1	55	90	36	0.947
7011ACN2L1/P5DB	D246111KL	55	90	36	0.788
7011ACN2L1/P6DB	E246111KL	55	90	36	0.788
7012DB		60	95	36	0.88
7012DF		60	95	36	0.88
7012DT		60	95	36	0.88
7012C/DB	236112	60	95	36	0.88
7012C/DF	336112	60	95	36	0.88
7012C/DT	436112	60	95	36	0.88
7012AC/DB	246112	60	95	36	0.9
7012AC/DF	346112	60	95	36	0.9
7012AC/DT	446112	60	95	36	0.9
7013C/DB	236113	60	95	36	1
7013C/DF	336113	60	95	36	1
7013C/DT	436113	60	95	36	1
7013AC/DB	246113	60	95	36	1
7013AC/DF	346113	60	95	36	1
7013AC/DT	446113	60	95	36	1
7013AC/P2DB	B246113J	65	100	36	0.839
7013AC/P4DB	C446113J	65	100	36	0.828
7013AC/P5DB	E1446113J	65	100	36	0.828
7013AC/P2DT	B446113J	65	100	36	0.828
7013ACN2L1/DB	246113LK	65	100	36	0.839
7014C/DB	236114	70	110	40	1.2
7014C/DF	336114	70	110	40	1.2
7014C/DT	436114	70	110	40	1.2
7014AC/DB	246114	70	110	40	1.28
7014AC/DF	346114	70	110	40	1.28
7014AC/DT	446114	70	110	40	1.45
7014CM/P5DB		70	110	40	1.1
7014AC/P2DT	B446114J	70	110	40	1.56
7015C/DB	236115	75	115	40	1.56
7015C/DF	336115	75	115	40	1.56
7015C/DT	436115	75	115	40	1.56
7015AC/DB	246115	75	115	40	1.56
7015AC/DF	346115	75	115	40	1.56
7015AC/DT	446115	75	115	40	1.56
7015EA/DT	446115E	75	115	40	1.56
7018EAC/DB	246115E	75	115	40	1.56
7015EAC/DF	346115E	75	115	40	1.56
7015C/DBB		75	115	40	1.56
7016C/DB	236116	80	125	44	1.8
7016C/DF	336116	80	125	44	1.8
7016C/DT	436116	80	125	44	1.8
