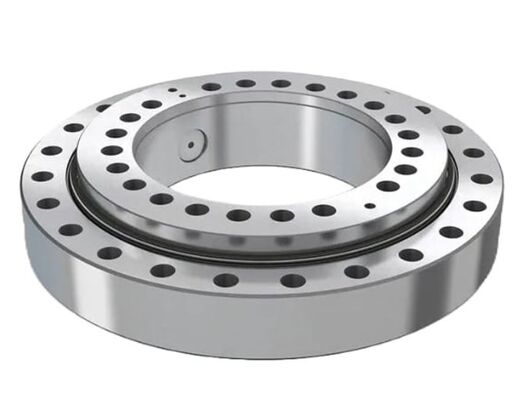

Heavy Duty Slewing Ring Bearing for Excavator & Crane – Single Row Ball, Internal Gear, Factory Price
| Product Type: | 1. Single Row Four-Point Contact Ball Slewing Bearing2. Double Row Angular Contact Ball Slewing Bearing3. Single Row Cross Roller Slewing Bearing4. Three-Row Cylindrical Roller Slewing Bearing | Material: | High-Carbon Chromium Steel |
| Diameter Range: | 100mm - 15,000mm (Customizable; Large-sized Bearings Can Be Segmented For Transportation) | Precision Grade: | P0, P6, P5 (Optional); Surface Roughness: Ra ≤ 0.2μm; Axial Clearance: 0.02-0.05mm (Adjustable) |
| Customization: | Accept | Lubrication: | Grease / Oil |
| Packing: | Customer Requirement | ||
| High Light: | Heavy Duty Slewing Ring Bearing,Single Row Ball Slewing Bearing,Internal Gear Slewing Bearing |
||
Our slewing ring bearing is designed for infrastructure, mining, and renewable energy projects worldwide.
- For excavators and cranes: Direct replacement for Komatsu, Hitachi Kobelco. Available in single row ball, double row ball, internal gear, and external gear options.
- For wind turbines and solar trackers: High precision cross roller design with corrosion-resistant coating suitable for humid and coastal environments.
- For port and marine equipment: Heavy load capacity with IP66 sealing rating and 20+ year design life.
- Inner diameter 200-5000mm, outer diameter 400-5500mm, height 50-300mm.
- Material 50Mn or 42CrMo forged steel.
- Heat treatment induction hardening HRC55-62.
- Precision grade P0, P5, P6 available.
- Packing includes anti-rust oil, plastic wrap, and wooden crate for sea freight.
- MOQ 1 piece accepted.
| Current bearing designation | Dimensions(mm) | weigh (kg) | ||
|---|---|---|---|---|
| d | D | T | ||
| Type579 | ||||
| 5797/900 | 900 | 1150 | 90 | 230 |
| D5792/900 | 900 | 1150 | 90 | 227 |
