| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | M 246942/M 246910/LM 545848/LM 545810/88925/88126/M 252330/M 252310/H 247549/H 247510/H 247548/H 247510/LM 545849/LM 545810/8574/8520/96925/96140/LM 446349/LM 446310/8575/8520/88931/88126/M 246949/M 246910/EE 127095/127135/EE 923095/923175/8578/8520/EE 275 |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |
Taper Roller Bearings – EntrustBearing
EntrustBearing offers taper roller bearings in many designs and sizes.
Choose from three types
How they work

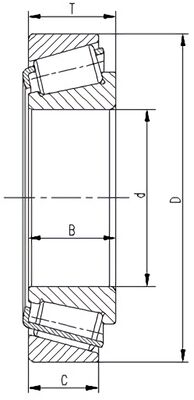

Tapered inner and outer raceways with tapered rollers inside. All tapered surfaces meet at one point on the bearing axis.
Why choose this design
Perfect for combined radial and axial loads. The larger the contact angle α, the higher the axial load capacity.
Quick selection tip
Check the calculation factor e. Larger e means larger contact angle and better for axial loads.
Easy to install
These bearings are separable. The cone (inner ring with rollers and cage) mounts separately from the cup (outer ring). Saves time during installation and maintenance.
| Bearing No. | Cone | Cup | BORE | O.D. | WIDTH | LOAD | Mass |
|---|---|---|---|---|---|---|---|
| M 246942/M 246910 | M246942 | M246910 | 9.1250 | 13.2500 | 2.5625 | 352000 | 40.7 |
| LM 545848/LM 545810 | LM545848 | LM545810 | 9.2460 | 12.3750 | 1.9370 | 213000 | 22.4 |
| 88925/88126 | 88925 | 88126 | 9.2500 | 12.6250 | 2.0000 | 185000 | 22.4 |
| M 252330/M 252310 | M252330 | M252310 | 9.2500 | 15.0000 | 2.9375 | 455000 | 74.7 |
| H 247549/H 247510 | H247549 | H247510 | 9.2500 | 15.1250 | 4.4375 | 699000 | 109.7 |
| H 247548/H 247510 | H247548 | H247510 | 9.2500 | 15.1250 | 4.4375 | 757000 | 109.7 |
| LM 545849/LM 545810 | LM545849 | LM545810 | 9.2500 | 12.3750 | 1.9375 | 233000 | 21.6 |
| 8574/8520 | 8574 | 8520 | 9.2500 | 12.8750 | 2.0625 | 227000 | 27.1 |
| 96925/96140 | 96925 | 96140 | 9.2500 | 14.0000 | 2.6875 | 319000 | 48.9 |
| LM 446349/LM 446310 | LM446349 | LM446310 | 9.2500 | 12.2500 | 1.8125 | 208000 | 19.4 |
| 8575/8520 | 8575 | 8520 | 9.2500 | 12.8750 | 2.0625 | 240000 | 26.7 |
| 88931/88126 | 88931 | 88126 | 9.3125 | 12.6250 | 1.7500 | 185000 | 20.9 |
| M 246949/M 246910 | M246949 | M246910 | 9.3437 | 13.2500 | 2.5625 | 352000 | 38.4 |
| EE 127095/127135 | EE127095 | 127135 | 9.5000 | 13.7460 | 2.2500 | 282000 | 36.6 |
| EE 923095/923175 | EE923095 | 923175 | 9.5000 | 17.5000 | 4.0000 | 544000 | 143.1 |
| 8578/8520 | 8578 | 8520 | 9.5000 | 12.8750 | 2.0625 | 240000 | 24.5 |
| EE 275095/275155 | EE275095 | 275155 | 9.5000 | 15.5000 | 2.9062 | 359000 | 70.7 |
| EE 170950/171450 | EE170950 | 171450 | 9.5000 | 14.5000 | 2.0000 | 231000 | 39 |
| EE 126097/126150 | EE126097 | 126150 | 9.6250 | 15.0000 | 3.1250 | 381000 | 66.7 |
| M 348449/M 348410 | M348449 | M348410 | 9.7500 | 13.6250 | 2.5000 | 365000 | 38.8 |
| EE 170975/171450 | EE170975 | 171450 | 9.7500 | 14.5000 | 2.0000 | 231000 | 36.9 |
| M 252337/M 252310 | M252337 | M252310 | 9.7500 | 15.0000 | 2.9375 | 455000 | 68.3 |
| HH 249949/HH 249910 | HH249949 | HH249910 | 9.7500 | 16.0000 | 4.5563 | 846000 | 132.9 |
| 28880/28820 | 28880 | 28820 | 9.7500 | 12.0000 | 0.8750 | 83900 | 7.1 |
| EE 126098/126150 | EE126098 | 126150 | 9.8130 | 15.0000 | 3.1250 | 381000 | 64.2 |
| L 848849/L 848810 | L848849 | L848810 | 9.9990 | 12.7933 | 1.5354 | 161000 | 16.6 |
| DIT # | CONE | CUP | BORE | O.D. | WIDTH | LOAD | WEIGHT |
| d | D | W | STATIC lb | lb. | |||
| HH 953749/HH 953710 | HH953749 | HH953710 | 10.0000 | 21.0000 | 5.2500 | 694000 | 275.6 |
| EE 620100/620220 | EE620100 | 620220 | 10.0000 | 22.0000 | 4.8750 | 603000 | 279.7 |
| EE 134100/134143 | EE134100 | 134143 | 10.0000 | 14.3750 | 2.3125 | 299000 | 39.8 |
| 29875/29820 | 29875 | 29820 | 10.0000 | 12.7500 | 0.8750 | 87800 | 9.5 |
| HM 252344/HM 252310 | HM252344 | HM252310 | 10.0000 | 16.6250 | 3.3906 | 455000 | 97 |
| EE 275100/275155 | EE275100 | 275155 | 10.0000 | 15.5000 | 2.9062 | 359000 | 64.8 |
| HM 252343/HM 252310 | HM252343 | HM252310 | 10.0000 | 16.6250 | 3.3906 | 455000 | 94 |
| M 249749/M 249710 | M249749 | M249710 | 10.0000 | 14.1250 | 2.8125 | 416000 | 47 |
| M 349547/M 349510 | M349547 | M349510 | 10.0630 | 13.5000 | 2.2500 | 286000 | 31.8 |
| M 349549 A/M 349510 | M349549A | M349510 | 10.1250 | 13.5000 | 2.2500 | 321000 | 29.1 |
| M 249747/M 249710 | M249747 | M249710 | 10.1250 | 14.1250 | 2.8125 | 416000 | 45.6 |
| M 349549/M 349510 | M349549 | M349510 | 10.1250 | 13.5000 | 2.2500 | 321000 | 29.6 |
