| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | 30230 M/30230 M/H 432649/H 432610/DIT #/EE 450601/451212/L 630349/L 630310/M 231648/M 231610/99600/99100/HH 234049/HH 234010/M 231649/M 231610/L 30649/L 730610/HH 234048/HH 234010/LM 330448/LM 330410/EE 107060/107105/H 936340/H 936316/H 936340/H 93610/L 43 |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |

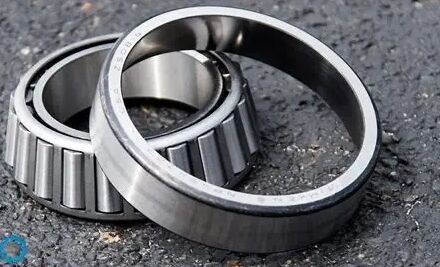

Tapered roller bearings designed for combined radial and axial loads. Suitable for heavy-duty, high-impact working conditions.
Model range: 30202 – 32322
Precision: P0 / P6 / P5
Cage: steel / nylon / brass
Steel: GCr15 bearing steel
Hardness: HRC 60–64
Standard: ISO / DIN / JIS
100% inspected: no cracks, no defects
Heat treatment: controlled atmosphere quenching and tempering
Packaging: Customer Requirement
Lead time: standard sizes 3–7 days, custom orders 15–25 days
MOQ: 50 pieces (mixed models accepted)
Click Send Inquiry for best factory price, free sample for qualified buyers, and fast shipping
| Bearing No. | Cone | Cup | BORE | O.D. | WIDTH | LOAD | Mass |
|---|---|---|---|---|---|---|---|
| 30230 M/30230 M | 30230M | 30230M | 5.9055 | 10.6299 | 1.9290 | 165000 | 24.4 |
| H 432649/H 432610 | H432649 | H432610 | 5.9995 | 10.6250 | 3.0315 | 265000 | 40.2 |
| DIT # | CONE | CUP | BORE | O.D. | WIDTH | LOAD | WEIGHT |
| d | D | W | STATIC lb | lb. | |||
| EE 450601/451212 | EE450601 | 451212 | 6.0000 | 12.1250 | 3.5000 | 333000 | 63.2 |
| L 630349/L 630310 | L630349 | L630310 | 6.0000 | 7.5625 | 0.9843 | 62200 | 3.5 |
| M 231648/M 231610 | M231648 | M231610 | 6.0000 | 8.7500 | 1.8437 | 150000 | 12.6 |
| 99600/99100 | 99600 | 99100 | 6.0000 | 10.0000 | 2.6250 | 231000 | 27.5 |
| HH 234049/HH 234010 | HH234049 | HH234010 | 6.0000 | 12.1250 | 3.5000 | 354000 | 63.5 |
| M 231649/M 231610 | M231649 | M231610 | 6.0000 | 8.7500 | 1.8437 | 150000 | 12.8 |
| L 30649/L 730610 | L730649 | L730610 | 6.0000 | 8.0000 | 1.1250 | 76100 | 5.4 |
| HH 234048/HH 234010 | HH234048 | HH234010 | 6.0000 | 12.1250 | 3.5000 | 354000 | 64.3 |
| LM 330448/LM 330410 | LM330448 | LM330410 | 6.0000 | 8.0000 | 1.6250 | 125000 | 7.7 |
| EE 107060/107105 | EE107060 | 107105 | 6.0000 | 10.5625 | 2.9375 | 263000 | 36.8 |
| H 936340/H 936316 | H936340 | H93616 | 6.1250 | 13.5000 | 3.3750 | 316000 | 75.9 |
| H 936340/H 93610 | H936340 | H936310 | 6.1250 | 13.0000 | 3.3750 | 316000 | 69.7 |
| L 432349/L 432310 | L432349 | L3432310 | 6.2500 | 8.0938 | 0.9375 | 63000 | 4.2 |
| 46780/46720 | 46780 | 46720 | 6.2500 | 8.8750 | 1.6250 | 143000 | 11.3 |
| EE 280626/281200 | EE280626 | 281200 | 6.2500 | 12.0000 | 2.6250 | 195000 | 44.9 |
| JM 734445/JM 734410 | JM734445 | JM734410 | 6.2992 | 9.4488 | 1.8110 | 171000 | 15.8 |
| JP 16049/JP 16010 | JP16049 | JP16010 | 6.2992 | 8.6614 | 1.2598 | 83700 | 7 |
| 32032 XM/32032 XM | 32032XM | 32032XM | 6.2992 | 9.4488 | 2.0079 | 192000 | 17.4 |
| HM 23752/HM 237510 | HM237532 | HM237510 | 6.3120 | 11.3750 | 2.5000 | 278000 | 39.3 |
| 86650/86100 | 86650 | 86100 | 6.5000 | 10.0000 | 1.8125 | 145000 | 16.7 |
| HH 437549/HH 437510 | HH437549 | HH437510 | 6.5000 | 13.2500 | 3.6250 | 434000 | 84.1 |
| EE 219065/219122 | EE219065 | 219122 | 6.5000 | 12.2500 | 3.2500 | 341000 | 60.1 |
| 94649/94113 | 94649 | 94113 | 6.5000 | 11.3750 | 2.5000 | 242000 | 37.5 |
| H 238140/H 238110 | H238140 | H238110 | 6.5000 | 12.2500 | 3.2500 | 378000 | 62.5 |
| M 235145/M 235113 | M235145 | M235113 | 6.5000 | 10.0000 | 1.8125 | 166000 | 17.4 |
| EE 219065/219117 | EE219065 | 219117 | 6.5000 | 11.7500 | 3.2500 | 34000 | 53.4 |
| 67780/67720 | 67780 | 67720 | 6.5000 | 9.7500 | 1.8750 | 175000 | 17.4 |
| 46790/46720 | 46790 | 46720 | 6.5000 | 8.8750 | 1.6250 | 143000 | 10.2 |
| HM 237535/HM 237510 | HM237535 | HM237510 | 6.5000 | 11.3750 | 2.5000 | 278000 | 38 |
| 46792/46720 | 46792 | 46720 | 6.5625 | 8.8750 | 1.6250 | 143000 | 10 |
