| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | 79764/797/600G2/797/670/797/700G/797/845G2/797/870G/797/870K/797/870G2K1/797/962G2/792/1000G2/792/1000G2K/792/1000G2K1/792/1000G2K2/797/1060G2/797/1200G2/792/1250G2/797/1250G2/797/1250G2K/797/1278G2K/797/1320G2/797/1370G/797/1380G2/3-944G2/3-944G2K/3-944G2 |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |

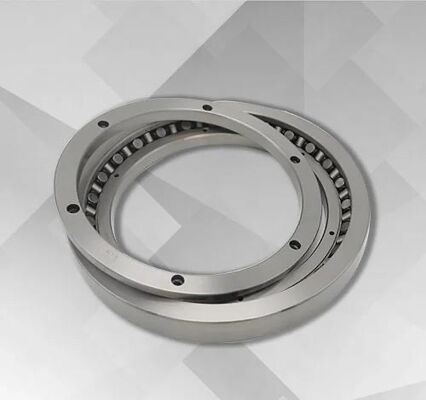

Crossed Roller Slewing Bearing is a high-performance slewing ring bearing with cylindrical rollers arranged crosswise in a single raceway. It can withstand axial loads, radial loads and tilting moments simultaneously, providing high rigidity, high rotation accuracy and stable operation under complex working conditions.
Manufactured from premium alloy steel with advanced heat treatment, this bearing features high wear resistance, long service life, low friction and low noise. Its compact structure enables easy installation and maintenance, making it widely suitable for various machinery requiring precise rotation and heavy load support.
| Designation | Boundary Dimension | Mounting Hole Size | Basic Load Ratings (10kN) | Mass (kg) | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| D | d | H | D1 | D2 | n1 | n2 | φ1 | φ2 | |||
| 79764 | 550 | 320 | 85 | 515 | 365 | 12 | 8 | 17 | 18 | 88.2 | 85.6 |
| 797/600G2 | 900 | 600 | 125 | 848 | 690 | 30 | 29 | 26 | M24 | 280 | 246 |
| 797/670 | 907 | 670 | 85 | 870 | 730 | 12 | 8 | M16 | 18 | 165 | 170 |
| 797/700G | 1000 | 700 | 140 | 940 | 770 | 24 | 24 | M20 | 22 | 254 | 370 |
| 797/845G2 | 1150 | 845 | 130 | 1100 | 895 | 24 | 24 | 22 | 22 | 401 | 393 |
| 797/870G | 1180 | 870 | 115 | 1125 | 920 | 18 | 18 | 28 | 28 | 292 | 355 |
| 797/870K | 1180 | 870 | 115 | 1125 | 920 | 18 | 18 | 28 | 28 | 232 | 355 |
| 797/870G2K1 | 1180 | 870 | 115 | 1125 | 920 | 18 | 18 | 28 | 28 | 320 | 356 |
| 797/962G2 | 1200 | 962 | 90 | -- | -- | -- | -- | -- | 254 | 224 | |
| 792/1000G2 | 1270 | 1000 | 100 | 1220 | 1050 | 36 | 36 | 19 | 19 | 333 | 303 |
| 792/1000G2K | 1270 | 1000 | 100 | 1220 | 1050 | 36 | 36 | 19 | 19 | 333 | 303 |
| 792/1000G2K1 | 1270 | 1000 | 100 | 1220 | 1050 | 36 | 36 | 19 | 19 | 333 | 303 |
| 792/1000G2K2 | 1270 | 1000 | 100 | 1220 | 1050 | 36 | 36 | 19 | 19 | 333 | 303 |
| 797/1060G2 | 1400 | 1060 | 120 | -- | -- | -- | -- | -- | -- | 429 | 596 |
| 797/1200G2 | 1520 | 1200 | 90 | -- | -- | -- | -- | -- | -- | 409 | 504 |
| 792/1250G2 | 1700 | 1250 | 155 | 1650 | 1330 | 24 | 24 | 26 | 26 | 602 | 1103 |
| 797/1250G2 | 1608 | 1250 | 148 | 1512 | 1297 | 16 | 16 | 25 | 25 | 595 | 743 |
| 797/1250G2K | 1608 | 1250 | 148 | 1512 | 1297 | 16 | 16 | 25 | 25 | 595 | 717 |
| 797/1278G2K | 1660 | 1278 | 120 | 1535 | 1335 | 18 | 18 | 26 | 26 | 427 | 589 |
| 797/1320G2 | 1715 | 1320 | 134 | -- | -- | -- | -- | -- | -- | 607 | 958 |
| 797/1370G | 1840 | 1370 | 160 | 1770 | 1430 | 30 | 24 | 28 | 28 | 997 | 1213 |
| 797/1380G2 | 1700 | 1380 | 145 | 1650 | 1440 | 24 | 24 | 27 | 27 | 461 | 746 |
| 3-944G2 | 1680 | 1412 | 170 | -- | 1460 | -- | 24 | -- | 18 | 617 | 725 |
| 3-944G2K | 1680 | 1412 | 170 | -- | 1460 | -- | 24 | -- | 18 | 576 | 723 |
| 3-944G2K1 | 1680 | 1412 | 185 | -- | 1460 | -- | 24 | -- | 18 | 576 | 759 |
| 797/1600G | 2140 | 1600 | 145 | 1940 | 1710 | 48 | 48 | 26 | 26 | 896 | 1357 |
| 797/1776G2 | 2210 | 1776 | 150 | 2105 | 1840 | 36 | 36 | 26 | 26 | 1113 | 1244 |
| 797/1860G2 | 2320 | 1860 | 151 | 2245 | 1980 | 42 | 42 | 33 | 33 | 890 | 1772 |
| 797/1916G2 | 2320 | 1916 | 150 | 2245 | 1980 | 42 | 42 | 34 | 34 | 1195 | 1214 |
| 797/2190G | 2860 | 2190 | 300 | 2800 | 2270 | 36 | 36 | 32 | 32 | 3035 | 4797 |
| 797/2500G2 | 2980 | 2500 | 180 | 2910 | 2590 | 48 | 48 | 33 | 33 | 1760 | 2913 |
| 792/2800G | 3310 | 2800 | 190 | 3220 | 2890 | 60 | 60 | 39 | 39 | 2117 | 2864 |
