| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | 61848/61948 MA/16048 MA/6048 M/6248 M/6348 M/61852/61952 MA/16052 MA/6052 M/6252 M/6352 M/61856/61856 MA/61956 MA/16056 MA/6056 M/6256 M/6356 M/61860 MA/61960 MA/16060 MA/6060 M/6260 M/61864 MA/60964 MA/61964 MA（customizable) |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |

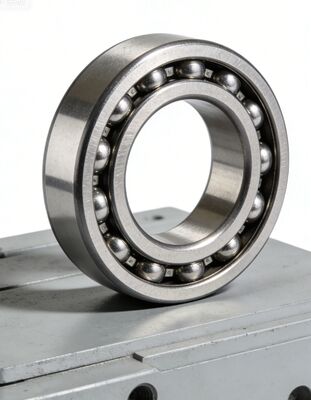

Deep groove ball bearings are widely applied across countless industrial fields, making them one of the most versatile bearing types on the market. To fully satisfy your diverse operating requirements, we supply a complete range of designs, dimensions and structures, including open, single-shielded, double-shielded and sealed versions. Our products feature stable performance, low friction and long service life, ideal for general machinery, motors, fans, home appliances and automotive equipment. We support mass production, OEM customization and flexible order solutions to meet your business needs.
We also offer insulated cylindrical roller bearings and deep groove ball bearings, with insulation on either inner or outer ring to protect against electric corrosion.
Optimized structure for high speed and low energy consumption. Excellent anti-rust and anti-corrosion performance, especially for stainless steel types. Stable quality reduces your after-sales cost. Suitable for long-term continuous working conditions.

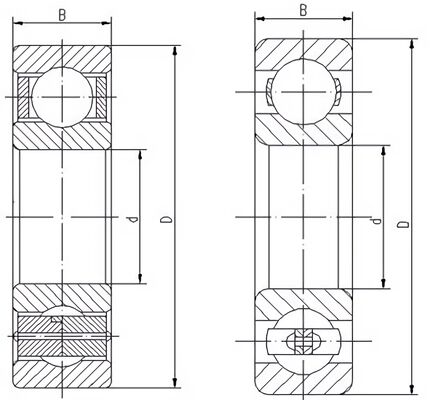

| Bearings No. | d (mm) | D (mm) | B (mm) | Cr (kN) | C0r (kN) | Weight (kg) |
| 61848 | 240 | 300 | 28 | 108 | 150 | 4.5 |
| 61948 MA | 240 | 320 | 38 | 159 | 200 | 8.6 |
| 16048 MA | 240 | 360 | 37 | 178 | 220 | 14.5 |
| 6048 M | 240 | 360 | 56 | 255 | 315 | 19.5 |
| 6248 M | 240 | 440 | 72 | 358 | 465 | 51 |
| 6348 M | 240 | 500 | 95 | 442 | 585 | 92.5 |
| 61852 | 260 | 320 | 28 | 111 | 163 | 4.8 |
| 61952 MA | 260 | 360 | 46 | 212 | 270 | 14.5 |
| 16052 MA | 260 | 400 | 44 | 238 | 310 | 21.5 |
| 6052 M | 260 | 400 | 65 | 291 | 375 | 29.5 |
| 6252 M | 260 | 480 | 80 | 390 | 530 | 65.5 |
| 6352 M | 260 | 540 | 102 | 507 | 710 | 115 |
| 61856 | 280 | 350 | 33 | 138 | 200 | 7.4 |
| 61856 MA | 280 | 350 | 33 | 138 | 200 | 8 |
| 61956 MA | 280 | 380 | 46 | 216 | 285 | 15 |
| 16056 MA | 280 | 420 | 44 | 242 | 335 | 23 |
| 6056 M | 280 | 420 | 65 | 302 | 405 | 31 |
| 6256 M | 280 | 500 | 80 | 423 | 600 | 71 |
| 6356 M | 280 | 580 | 108 | 572 | 850 | 140 |
| 61860 MA | 300 | 380 | 38 | 172 | 245 | 10.5 |
| 61960 MA | 300 | 420 | 56 | 270 | 375 | 24.5 |
| 16060 MA | 300 | 460 | 50 | 286 | 405 | 32 |
| 6060 M | 300 | 460 | 74 | 358 | 500 | 44 |
| 6260 M | 300 | 540 | 85 | 462 | 670 | 88.5 |
| 61864 MA | 320 | 400 | 38 | 172 | 255 | 11 |
| 60964 MA | 320 | 440 | 37 | 216 | 310 | 16 |
| 61964 MA | 320 | 440 | 56 | 276 | 400 | 25.5 |
