22212 22215 Precision Rating Spherical Roller Bearing for Heavy Machinery Applications with Radial Load Capacity

Name: 22212 22215 Precision Rating Spherical Roller Bearing for Heavy Machinery Applications with Radial Load Capacity
Brand: Wuxi Tianyuqi Bearing Technology Co., Ltd
SKU: 22212, 22215
Availability: InStock

Brand Name:	OEM/SKF/NSK/FAG/NTN/Timken/LYC/HRB/ZWZ
Model Number:	22212, 22215
MOQ:	5
Price:	negotiation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50,000pcs/month

Detail Information

Product Description

Detail Information

Rollingelement:

Spherical Rollers

Model No:

22212, 22215

Lubriexcavatorion:

Grease/ Oil

Oem:

Quality:

High Qulity

Industry:

Machine Bed Bearings

Original:

China

Small Order:

Packaging Details:

sea worthy standard

Highlight:

Precision Rating Spherical Roller Bearing

Radial Load Industrial Roller Bearing

Heavy Machinery Applications Self-Aligning Bearing

Product Description

22212 & 22215 Precision Spherical Roller Bearings

High-precision spherical roller bearings designed for heavy radial loads in demanding industrial applications. These self-aligning bearings automatically adjust to shaft and housing misalignment while maintaining optimal performance.

Product Overview

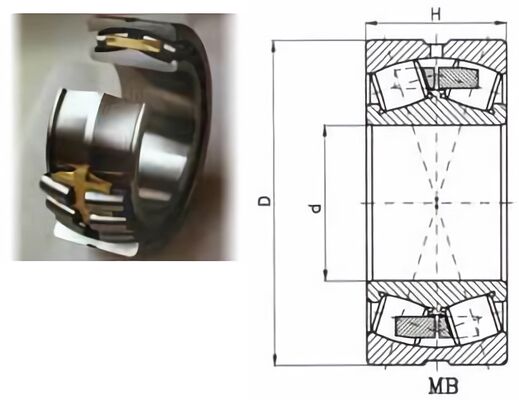

Spherical roller bearings feature spherical rollers positioned between the spherical raceway on the outer ring and two grooves on the inner ring. The arc raceway center aligns with the bearing center, enabling self-alignment to accommodate shaft bending, housing misalignment, and eccentricity.

Key Capabilities

• Handles radial loads and bidirectional axial loads

• Exceptional radial load capacity for heavy and shock loads

• Tapered bore with adapter or withdrawal sleeve for easy installation/removal

Standard Bearing Types

Open bearings
Sealed bearings
Bearings for vibratory applications

Cage Options

Window-type steel cage or machined brass cage

Product Specifications

Product Type

Spherical Roller Bearing

Precision Ratings

P0, P6, P5, P4, P2

Load Type

Radial Load

Origin

China

Order Flexibility

Small orders accepted, OEM services available

Technical Parameters

Bearings No.	d (mm)	D (mm)	B (mm)	Cr (kN)	C0r (kN)	Weight (kg)
22212 E	60	110	28	156	166	1.15
22212 EK	60	110	28	156	166	1.15
BS2-2212-2CS	60	110	34	156	166	1.3
BS2-2212-2CSK	60	110	34	156	166	1.3
21312 E	60	130	31	212	240	2.1
21312 EK	60	130	31	212	240	2.05
22312 E	60	130	46	310	335	3.1
22312 E/VA405	60	130	46	310	335	3.1
22312 EK	60	130	46	310	335	3.05
22312 EK/VA405	60	130	46	310	335	3.05
24013 CC/W33	65	100	35	132	173	0.95
24013 CCK30/W33	65	100	35	132	173	0.93
24013-2CS5/VT143	65	100	35	132	173	0.95
22213 E	65	120	31	193	216	1.55
22213 EK	65	120	31	193	216	1.5
BS2-2213-2CS	65	120	38	193	216	1.6
BS2-2213-2CSK	65	120	38	193	216	1.6
21313 E	65	140	33	236	270	2.55
21313 EK	65	140	33	236	270	2.5
22313 E	65	140	48	340	360	3.75
22313 E/VA405	65	140	48	340	360	3.75
22313 EK	65	140	48	340	360	3.65
22313 EK/VA405	65	140	48	340	360	3.65
22214 E	70	125	31	208	228	1.55
22214 EK	70	125	31	208	228	1.5
BS2-2214-2CS	70	125	38	208	228	1.8
BS2-2214-2CSK	70	125	38	208	228	1.75
21314 E	70	150	35	285	325	3.1
21314 EK	70	150	35	285	325	3.05
22314 E	70	150	51	400	430	4.55
22314 E/VA405	70	150	51	400	430	4.55
22314 EK	70	150	51	400	430	4.45
22314 EK/VA405	70	150	51	400	430	4.45
24015 CC/W33	75	115	40	173	232	1.55
24015 CCK30/W33	75	115	40	173	232	1.55
24015-2CS2/VT143	75	115	40	173	232	1.55
22215 E	75	130	31	212	240	1.7
22215 EK	75	130	31	212	240	1.65
BS2-2215-2CS	75	130	38	212	240	2.1
BS2-2215-2CSK	75	130	38	212	240	2.05

Industrial Applications

Spherical roller bearings are essential components in industrial environments requiring robust load handling capabilities. Their design accommodates heavy radial loads and moderate bidirectional axial loads, making them ideal for:

Rolling mills and paper-making machines
Engineering facilities and crushers
Printing machine vibrators and decelerators
Heavy-duty vehicles and woodworking machinery
Gearboxes, conveyor systems, and mining equipment
Steel manufacturing, cement production, and power generation

Customization & Brand Options

Our spherical roller bearings, including models 22212 and 22215, are available from leading brands including OEM, SKF, NSK, FAG, NTN, Timken, LYC, HRB, and ZWZ. Manufactured in China to international quality standards.

Packaging & Shipping

Sea-worthy standard packaging provided as per order requirements.
