Single Row Spherical Plain Bearing Industrial Custom Thin Section Angular Contact Bearings

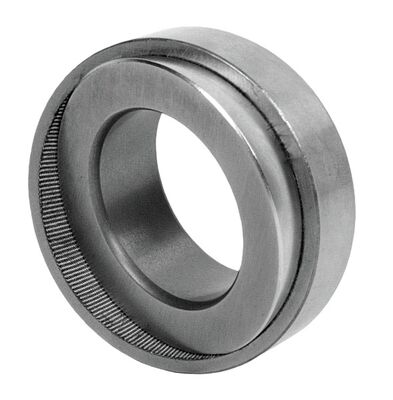

Angular Contact Spherical Plain Bearing

Product Introduction

Angular Contact Spherical Plain Bearings are designed to accommodate combined radial and axial loads while allowing oscillating or rotational motion. The angular contact design enhances load capacity in a specific direction, making the bearing suitable for precision applications where directional axial loads are significant.

Operating Conditions

• Temperature range: -40°C to 200°C (depending on materials and lubrication)

• Speed: Moderate to high depending on lubrication and load

• Lubrication: Grease or oil, depending on application

Key Advantages

• High load capacity for both radial and axial loads in the designed contact direction

• Excellent rotational and oscillating performance under combined loads

• Compact and robust design suitable for high-precision machinery

• Reduced wear and extended service life due to precision internal contact

• Can operate under challenging environmental conditions (dust, moisture, vibration)

Structural Types

• Single-row angular contact

• Customizable contact angles for specific load directions

• Non-separable design with spherical inner ring for oscillation

Applications

• Robotics and mechanical arms requiring precise angular motion

• Automotive steering systems and suspension joints

• Construction machinery with oscillating components

• Industrial equipment with pivoting shafts

• Aerospace and defense applications requiring high load capacity and angular precision

OEM / Customization

This bearing supports OEM services and customization, allowing customers to specify brand labeling, lubrication options, precision tolerances, or packaging according to their requirements. It can be tailored to meet unique operational needs, ensuring optimal performance and full compatibility with customer-specific equipment.
