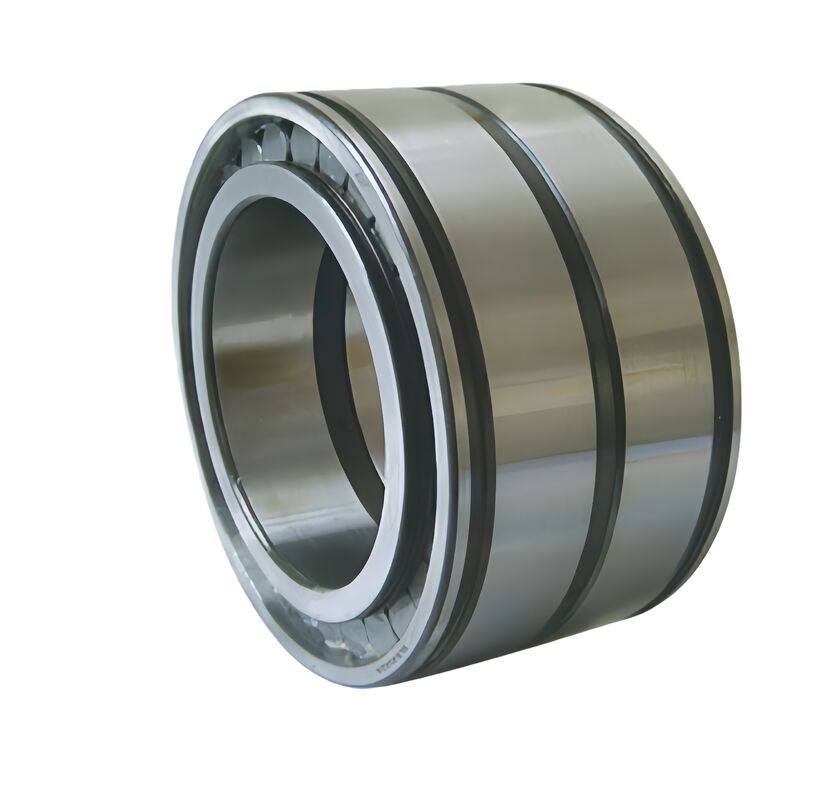

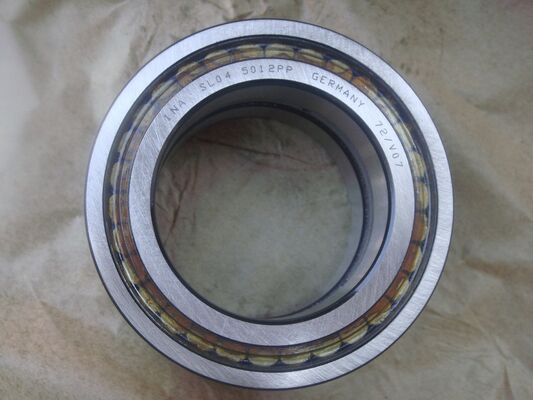

Single-Row Full-Complement Cylindrical Roller Bearing
Single-row full complement cylindrical roller bearings are designed to maximize radial load capacity in a compact footprint. By using the maximum number of rollers and omitting the cage, these bearings provide higher rigidity and support under heavy radial loads. They are suitable for applications where axial loads are minimal or guided separately.
Operating Temperature: -30°C to +120°C (typical)
Lubrication: Grease or oil-lubricated
Load Direction: Radial loads
Speed Range: Moderate; cage-less design limits high-speed operation compared to caged bearings
| Feature | Advantage |
|---|---|
| Maximum Radial Load | Full complement of rollers provides the highest radial load capacity for a given bore size |
| Compact Design | High rigidity and load capacity without increasing bearing outer dimensions |
| No Cage | Eliminates roller misalignment and increases roller contact area |
| High Rigidity | Resists deformation under heavy radial loads |
| Easy Assembly | Simple installation without the need for complex cage alignment |
N Type: Non-locating single-row full complement cylindrical roller bearing
NU Type: Inner ring rotation type
NJ Type: One-sided axial location type
NUP Type: Double-sided axial location type
| Industry | Typical Use |
|---|---|
| Heavy Machinery | Gearboxes, presses, conveyors |
| Machine Tools | Spindles, rotary tables requiring high rigidity |
| Electric Motors & Generators | Compact high radial load applications |
| Rolling Mills | Bearings for heavy radial loads under moderate speed |
| Automotive | Differential housings, transmission shafts |
This bearing supports OEM services and customization, allowing customers to specify brand labeling, lubrication options, precision tolerances, or packaging according to their requirements. It can be tailored to meet unique operational needs, ensuring optimal performance and full compatibility with customer-specific equipment.
