| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | HH 231649/HH 231615/74550/74845/HM 231132/HM 231110/HH 231649/HH 231610/74550/74850/LM 328448/LM 328410/898 A/892/99550/99100/898/892/74550 A/74850/32028 XM/32028 XM/30228 CM/30228 CM/JP 14049/JP 14010/32928 M/32928 M/30228 M/30228 M/48684/48620/82562 A/82 |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |
Taper roller bearings are produced by EntrustBearing in many designs and sizes to match their many uses. These can be grouped as follows:

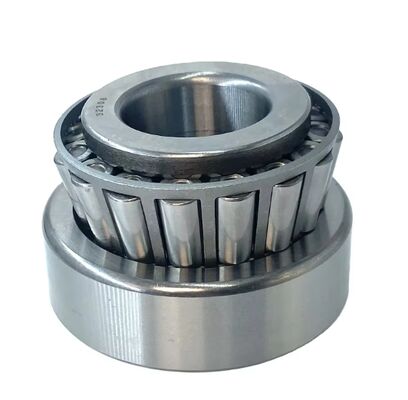

Taper roller bearings have tapered inner and outer ring raceways between which tapered rollers are arranged. The projection lines of all the tapered surfaces meet at a common point on the bearing axis. Their design makes taper roller bearings particularly suitable for the accommodation of combined radial and axial loads. The axial load carrying capacity of the bearings is largely determined by the contact angle α; the larger α, the higher the axial load carrying capacity. An indication of the angle size is given by the calculation factor e; the larger the value of e, the larger the contact angle and the greater the suitability of the bearing for carrying axial loads.
Taper roller bearings are generally separable, i.e. the cone, consisting of the inner ring with roller and cage assembly, can be mounted separately from the cup
EntrustBearing produces taper roller bearings in various designs and sizes to match their many practical uses
| Bearing No. | Cone | Cup | BORE | O.D. | WIDTH | LOAD | Mass |
| HH 231649/HH 231615 | HH231649 | HH231615 | 5.5000 | 11.6250 | 3.2500 | 302000 | 57.6 |
| 74550/74845 | 74550 | 74845 | 5.5000 | 8.4636 | 1.8750 | 138000 | 13 |
| HM 231132/HM 231110 | HM231132 | HM231110 | 5.5000 | 9.3125 | 2.2500 | 210000 | 22.4 |
| HH 231649/HH 231610 | HH231649 | HH231610 | 5.5000 | 11.3750 | 3.2500 | 302000 | 53.6 |
| 74550/74850 | 74550 | 74850 | 5.5000 | 8.5000 | 1.8750 | 138000 | 13.3 |
| LM 328448/LM 328410 | LM328448 | LM328410 | 5.5000 | 7.3750 | 1.1250 | 84300 | 5 |
| 898 A/892 | 898A | 892 | 5.5000 | 9.0000 | 2.2500 | 182000 | 19 |
| 99550/99100 | 99550 | 991000 | 5.5000 | 10.0000 | 2.6250 | 231000 | 30.9 |
| 898/892 | 898 | 892 | 5.5000 | 9.0000 | 2.2500 | 182000 | 19.1 |
| 74550 A/74850 | 74550A | 74850 | 5.5000 | 8.5000 | 1.8750 | 138000 | 13.2 |
| 32028 XM/32028 XM | 32028XM | 32028XM | 5.5118 | 8.2677 | 1.7716 | 143000 | 11.6 |
| 30228 CM/30228 CM | 30228CM | 30228CM | 5.5118 | 9.8425 | 1.8012 | 146000 | 18.1 |
| JP 14049/JP 14010 | JP14049 | JP14010 | 5.5118 | 7.6772 | 1.1417 | 68400 | 5.1 |
| 32928 M/32928 M | 32928M | 32928M | 5.5118 | 7.4803 | 1.2598 | 89500 | 5.5 |
| 30228 M/30228 M | 30228M | 30228M | 5.5118 | 9.8425 | 1.8012 | 146000 | 18.1 |
| 48684/48620 | 48684 | 48620 | 5.6250 | 7.8750 | 1.6250 | 126000 | 8.3 |
| 82562 A/82931 | 82562A | 82931 | 5.6250 | 9.3125 | 2.2500 | 182000 | 20.9 |
| 82562 A/82950 | 82562A | 82950 | 5.6250 | 9.5000 | 2.2500 | 182000 | 22.3 |
| LM 229147 C/LM 229110 | LM229147C | LM229110 | 5.6250 | 7.6762 | 1.2992 | 103000 | 6.1 |
| 48685/48620 | 48685 | 48620 | 5.6250 | 7.8750 | 1.6250 | 126000 | 8.5 |
| HH 932145/HH 932115 | HH932145 | HH932115 | 5.7500 | 12.2500 | 3.5000 | 282000 | 63.5 |
| M 229349/M 229310 | M229349 | M229310 | 5.7500 | 8.0000 | 1.7756 | 129000 | 8.8 |
| 82576/82931 | 82576 | 82931 | 5.7500 | 9.3125 | 2.2500 | 182000 | 20.4 |
| 82576/82950 | 82576 | 82950 | 5.7500 | 9.5000 | 2.2500 | 182000 | 21.8 |
| 36691/36620 | 36691 | 36620 | 5.7500 | 7.6250 | 1.1250 | 88600 | 4.9 |
| 3669/36620 | 36690 | 36620 | 5.7500 | 7.6250 | 1.1250 | 88600 | 5 |
| HH 932145/HH 932110 | HH932145 | HH932110 | 5.7500 | 12.0000 | 3.5000 | 282000 | 60.7 |
| 99575/99100 | 99575 | 99100 | 5.7500 | 10.0000 | 2.6250 | 231000 | 29.2 |
| LL 529749/LL 529710 | LL529749 | LL529710 | 5.7500 | 7.4063 | 0.8750 | 48200 | 3.1 |
| EE 107057/107105 | EE107057 | 107105 | 5.7500 | 10.5625 | 2.9375 | 263000 | 38.1 |
| HM 231148/HM 231110 | HM231148 | HM231110 | 5.8750 | 9.3125 | 2.2500 | 210000 | 20.2 |
| JL 730646/JL 730612 | JL730646 | JL730612 | 5.9055 | 8.0709 | 1.1250 | 76100 | 6 |
| 32030 XCM/32030 XCM | 32030XCM | 32030XCM | 5.9055 | 8.8583 | 1.8898 | 164000 | 14.1 |
| 32930 M/32930 M | 32930M | 32930M | 5.9055 | 8.2677 | 1.4960 | 129000 | 8.8 |
| 32030 XM/32030 XM | 32030XM | 32030XM | 5.9 055 | 8.8583 | 1.8898 | 164000 | 14.1 |
