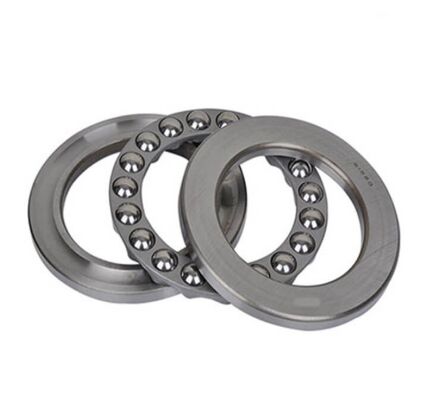

Thrust Ball Bearings – Single Direction & Double Direction, GCr15 Steel, High Axial Load Capacity, Suitable for Cranes, Machine Tools, and Vertical Shaft Applications 51100 51200 Series

Name: Thrust Ball Bearings – Single Direction & Double Direction, GCr15 Steel, High Axial Load Capacity, Suitable for Cranes, Machine Tools, and Vertical Shaft Applications 51100 51200 Series
Brand: Wuxi Tianyuqi Bearing Technology Co., Ltd
SKU: 51100 51200 Series
Availability: InStock

Brand Name:	OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG
Model Number:	51100 51200 Series
MOQ:	1(negotiation)
Price:	negotiation
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50,000pcs/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Type:

Single & Double

Cage Type:

Press Steel, Brass, Nylon

Lubrication:

Grease / Oil

Rollingelement:

Thrust Ball Bearings

Material:

High-quality Bearing Steel

Packaging Details:

sea worthy standard

Highlight:

Thrust ball bearings GCr15 steel

Single direction thrust bearings high axial load

Double direction thrust bearings machine tools

Product Description

Single Direction Thrust Ball Bearings

Product Overview
Compact design. Easy to install. Reliable axial load support.

Construction

Shaft washer + housing washer + ball and cage assembly
Separable structure – components mount independently
Simple and fast installation

Key Features

Handles axial loads in one direction
Provides shaft location in a single direction
No radial load capacity – strictly for axial applications

Common Applications

Lifting equipment
Rotary tables
Vertical shaft systems

Double Direction Thrust Ball Bearings

Product Overview
Bidirectional axial load support. Robust construction. Easy assembly.

Construction

One shaft washer + two housing washers + two ball and cage assemblies
Same housing washer and ball assembly as single direction type
Fully separable – all parts install separately

Key Features

Handles axial loads in both directions
Provides shaft location in both directions
No radial load capacity

Common Applications

Machine tool spindles
Worm shafts
Precision rotary mechanisms

Bearings No.	d (mm)	D (mm)	H (mm)	Cr (kN)	C0r (kN)	Weight (kg)
51213	65	100	27	63.7	163	0.78
51313	65	115	36	106	240	1.5
51413 M	65	140	56	216	490	4
51114	70	95	18	40.3	120	0.35
51214	70	105	27	65	173	0.79
51314	70	125	40	135	320	2
51414 M	70	150	60	234	550	5
51115	75	100	19	44.2	146	0.4
51215	75	110	27	67.6	183	0.83
51315	75	135	44	163	390	2.6
51415 M	75	160	65	251	610	6.75
51116	80	105	19	44.9	153	0.42
51216	80	115	28	76.1	208	0.91
51316	80	140	44	159	390	2.7
51416 M	80	170	68	270	670	7.95
51117	85	110	19	46.2	163	0.44
51217	85	125	31	97.5	275	1.2
51317	85	150	49	190	465	3.55
51417 M	85	180	72	286	750	9.45
51118	90	120	22	59.2	208	0.65
51218	90	135	35	119	325	1.7
51318	90	155	50	195	500	3.8
51418 M	90	190	77	307	815	11
51120	100	135	25	85.2	290	0.97
51120 M	100	135	25	79.3	260	0.97
51220	100	150	38	124	345	2.2
51320	100	170	55	229	610	4.95
51420 M	100	210	85	371	1060	15
51122	110	145	25	87.1	315	1.05
51222	110	160	38	130	390	2.4
