| Brand Name: | OEM, neutral/HRB/LYC/ZWZ/NSK/SKF/NTN/KOYO/FAG |
| Model Number: | 110.40.2240/110.40.2500/110.40.2800/110.50.3150/110.50.3550/110.50.4000/110.50.4500 |
| MOQ: | 1(negotiation) |
| Price: | negotiation |
| Payment Terms: | L/C,T/T,Western Union |
| Supply Ability: | 50,000pcs/month |
Product Overview

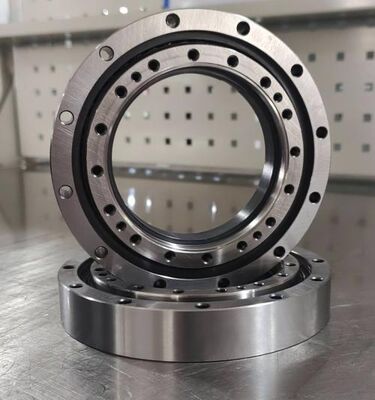

Crossed Roller Slewing Bearing is a high-performance slewing ring bearing with cylindrical rollers arranged crosswise in a single raceway. It can withstand axial loads, radial loads and tilting moments simultaneously, providing high rigidity, high rotation accuracy and stable operation under complex working conditions. Adopting premium alloy steel and advanced heat treatment, it features high wear resistance, long service life, low friction and low noise. Compact structure, easy installation and maintenance, widely used in various machinery requiring precise rotation and heavy load support.
· High precision rotation and excellent positioning accuracy
· Capable of carrying axial, radial and moment loads at the same time
· High rigidity and strong load-bearing capacity
· Compact structure, space-saving design
· Premium alloy steel material, good wear and impact resistance
· Low friction, smooth operation, low noise
· Long service life, stable performance
· Available in different sizes and customizable designs
· Easy installation and convenient maintenance
Application
· Construction machinery: excavators, cranes, concrete pump trucks, road rollers
· Lifting and handling equipment: tower cranes, mobile cranes, forklift turntables
· Wind power equipment: wind turbine yaw and pitch systems
· Industrial robots: robotic arms, automated production equipment
· Medical equipment, radar and communication equipment
· Mining machinery, port machinery, packaging machinery
· Food machinery, environmental protection equipment, rotary tables
| Designation | Boundary Dimension | Mounting Hole Size | Gear Data | |||||||||||||
| No Gear | External Gear | Internal Gear | D | d | H | D1 | D2 | n | φ | m | Da | Z | da | Z | b | x |
| 110.40.2240 | 111.40.2240 | 113.40.2240 | 2418 | 2065 | 112 | 2350 | 2131 | 48 | 33 | 16 | 2496 | 153 | 1984 | 125 | 90 | 0.5 |
| 112.40.2240 | 114.40.2240 | 2418 | 2065 | 112 | 2350 | 2131 | 48 | 33 | 18 | 2502 | 136 | 1980 | 111 | 90 | 0.5 | |
| 110.40.2500 | 111.40.2500 | 113.40.2500 | 2678 | 2325 | 112 | 2610 | 2391 | 56 | 33 | 18 | 2772 | 151 | 2232 | 125 | 90 | 0.5 |
| 112.40.2500 | 114.40.2500 | 2678 | 2325 | 112 | 2610 | 2391 | 56 | 33 | 20 | 2780 | 136 | 2220 | 112 | 90 | 0.5 | |
| 110.40.2800 | 111.40.2800 | 113.40.2800 | 2978 | 2625 | 112 | 2910 | 2691 | 56 | 33 | 18 | 3078 | 168 | 2520 | 141 | 90 | 0.5 |
| 110.50.3150 | 111.50.3150 | 113.50.3150 | 3376 | 2922 | 134 | 3286 | 3014 | 56 | 45 | 20 | 3480 | 171 | 2820 | 142 | 110 | 0.5 |
| 112.50.3150 | 114.50.3150 | 3376 | 2922 | 134 | 3286 | 3014 | 56 | 45 | 22 | 3476 | 155 | 2816 | 129 | 110 | 0.5 | |
| 110.50.3550 | 111.50.3550 | 113.50.3550 | 3776 | 3322 | 134 | 3686 | 3414 | 56 | 45 | 20 | 3880 | 191 | 3220 | 162 | 110 | 0.5 |
| 112.50.3550 | 114.50.3550 | 3776 | 3322 | 134 | 3686 | 3414 | 56 | 45 | 22 | 3894 | 174 | 3212 | 147 | 110 | 0.5 | |
| 110.50.4000 | 111.50.4000 | 113.50.4000 | 4226 | 3772 | 134 | 4136 | 3864 | 60 | 45 | 22 | 4334 | 194 | 3652 | 167 | 110 | 0.5 |
| 112.50.4000 | 114.50.4000 | 4226 | 3772 | 134 | 4136 | 3864 | 60 | 45 | 25 | 4350 | 171 | 3650 | 147 | 110 | 0.5 | |
| 110.50.4500 | 111.50.4500 | 113.50.4500 | 4726 | 4272 | 134 | 4636 | 4364 | 60 | 45 | 22 | 4940 | 217 | 4158 | 190 | 110 | 0.5 |
| 112.50.4500 | 114.50.4500 | 4726 | 4272 | 134 | 4636 | 4364 | 60 | 45 | 25 | 4850 | 191 | 4150 | 167 | 110 | 0.5 |
